SILVANET WILDFIRE SENSOR

Speed is everything when it comes to wildfire alerts. Learn more about how Dryad's AI-supported solar-powered gas sensors can detect wildfires in minutes.

The Silvanet Wildfire Sensor is designed for ultra-early detection, identifying forest fires within minutes to minimize damage and impact.

Sensitive to Hydrogen, Carbon Monoxide and other gasses, this “electronic nose” can smell fires as early as the smoldering phase, enabling firefighters to extinguish them before they spread. It also monitors microclimate conditions by measuring temperature, humidity, and air pressure.

The sensor employs highly sensitive gas detection with built-in AI to ensure accurate fire detection and minimize false alarms.

Using LoRaWAN for wireless data transmission, the sensor operates maintenance-free for 10-15 years and uses supercapacitors instead of batteries, eliminating the need for lithium and other toxic materials.


Dryad Wildfire Sensor, Solar-powered, Supercapacitor, Bosch BME 688, Gas Sensor, Air quality, Hydrogen, Carbon Dioxide, Carbon Monoxide, Temperature, Humidity, Air Pressure, Artifical Intelligence, Machine Learning, LoRaWAN, Wireless

ULTRA-EARLY WILDFIRE DETECTION

FOREST HEALTH & GROWTH MONITORING

  • Significantly reduces reaction time

  • Prevents economic losses

  • Lowers risk and insurance costs

  • Saves human life and wildlife

  • Reliable, consistent data collection

  • Enhances forest planning effectiveness

  • Prevents diseases and fights droughts

  • Optimizes tree growth and maximizes ROI

SPEED MATTERS

When it comes to wildfires, time is of the essence. Our wildfire detection sensors provide ultra-early fire detection, sensing carbon monoxide, hydrogen and other gases emitted by pyrolysis in the early stages of a wildfire, giving fire fighters valuable time to react and preventing ruinous megafires which are devastating to the environment.

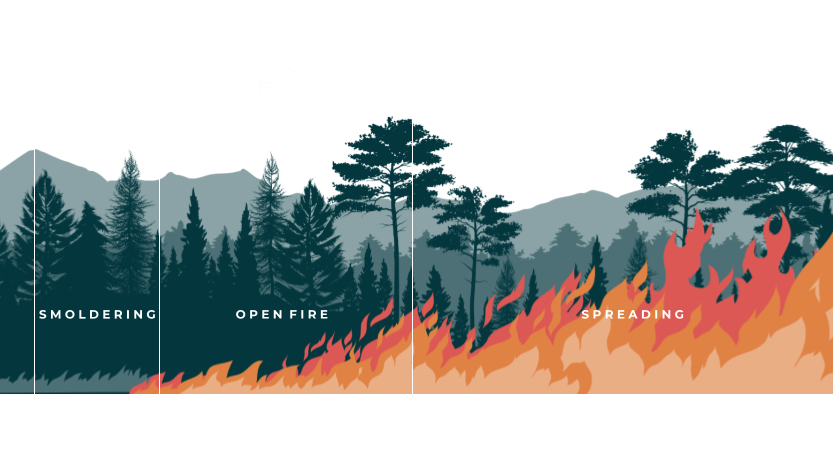

See how our solar-powered sensors compare to other wildfire detection approaches here:

Competitive Slide 4.png
Solution

WILDFIRE SENSOR TECHNICAL DATA

MECHANICAL SPECIFICATION

Material
Plastic (Weather, UV-proof)
Ingress Protection
IP67
Operational Temperature
0% to 100% Condensing
Solar Panel
6 x 6 cm
Weight
136g
Size
19 x 9.2 x 1.2 cm

REGULATORY COMPLIANCE

USA (FCC)
Europe (CE RED)
Canada (IC)
Thailand (NBTC)
Indonesia (SDPPI)

GENERAL CHARACTERISTICS

Maintenance
Maintenance-free (10 - 15 years)
Distance between Sensors (Radius)
100m radius for 60-min detection of 2 x 2 meter fire
Sensor to Mesh Gateway (Ratio)
Typically 100 sensors per Gateway, depending on topology
Power source
Solar-powered
Energy storage
Supercapacitors, battery-free
Installation
Tree- or pole-mounted (3 meter height recommended)

LORA PARAMETERS

ISM Bands
NA902-928, AU915
ISM Bands
EU868, AS923
Tx Power
14 dBm

GAS SENSOR BOSCH BME 688

Sensitive to
CO, CO2, H2, VOC, Temperature, Humidity, Air Pressure
Operation range
Pressure: 300 to 1100 hPa Humidity: 0 to 100% Temperature: -40 to 85°C
Size
3.0 x 3.0 x 0.93 mm
Graphical diagram of Dryad's Silvanet Wildfire Sensor
